Ceramic disc magnets sit at the heart of countless motors, sensors, and industrial systems that people use every day. These round, flat permanent magnets deliver reliable magnetic force at a fraction of the cost of rare earth alternatives. As global industries push toward energy-efficient motor designs and sustainable material sourcing, these components have gained fresh attention from engineers and procurement teams alike. This article breaks down their structure, performance traits, product types, and where they fit in today’s engineering landscape.

Material Composition and Structural Features

The performance of any ceramic permanent magnet begins with its raw materials and how those materials are processed. Engineers who understand this foundation can make better decisions when selecting magnets for specific motor designs or environmental conditions. The composition directly affects magnetic strength, temperature tolerance, and long-term durability.

Raw Materials and Ceramic Sintering Process

Ceramic ferrite magnets are manufactured using strontium carbonate (SrCO3) or barium carbonate (BaCO3) combined with iron oxide (Fe2O3) through a ceramic processing method. The production flow includes fine milling, wet pressing, sintering at high temperatures, and surface grinding. This gives the material its characteristic hardness and stable magnetic properties. At GAUMU MAGNET, our ferrite magnet factory in Huangshan follows a strict process: material inspection, fine milling, packing, sintering, surface grinding and cleaning, inspection, and final delivery. We customize production based on customer requirements for composition, magnetic properties, shape, and size. The entire workflow follows our ceramic ferrite magnets production standard, which has been refined through years of hands-on manufacturing experience.

Core Performance Advantages

Ceramic disc magnets hold a strong spot in the engineering field. They offer useful perks. Often, rare earth magnets cannot beat these benefits. This value stands out in large production runs. It also shows up during outdoor use or in hot settings. The main reasons for their wide use are listed below.

• High cost-effectiveness: They rank among the cheapest magnetic materials on the market. In fact, they cost about 50% less than rare earth options. At the same time, they still handle most motor needs.
• Corrosion resistance: This material naturally fights off rust fairly well. It does not need extra surface coatings. Therefore, it works great outside or in damp places.
• Heat resistance: It performs well in warm or hot conditions. Certain grades stay stable up to 135 degrees Celsius. They suffer very little permanent power loss.
• Strong anti-demagnetization: A high coercivity rating keeps the magnetic field steady. This holds true even during heavy, long-term use.
• Low eddy current loss: High electrical resistance cuts down on motor heating. As a result, the whole system runs more efficiently.

Product Classifications by Shape

Ferrite magnets appear in a few different physical shapes. Each form meets specific mechanical needs. They also fit different magnetic circuit setups. Disc, cylinder, and arc designs lead the market. They fit perfectly into motor rotor and stator layouts. Knowing these shape differences is helpful. It allows engineers to pick the best magnet for their specific task.

Disc and Cylinder Configurations

Ferrite cylinder magnets and disc magnets are widely used in electronic devices, sensors, and small motor assemblies. The disc shape provides a flat surface area that works well for magnetic coupling and Hall sensor triggering. Cylinder variants offer a longer magnetic field path, which suits applications needing deeper magnetic penetration. We produce these in various diameters and thicknesses, customizing dimensions based on each customer’s motor specifications and magnetic circuit design. Whether the project calls for a thin wafer or a thick puck, the manufacturing process stays the same — only the mold and pressing parameters change.

Arc Segment Designs

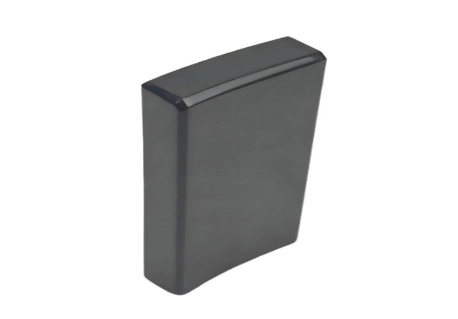

For motor rotor applications, the pole arc shape is essential. Arc segment magnets curve to fit snugly against the rotor or stator inner wall, creating a more uniform magnetic field distribution and reducing cogging torque. Our premium wet-pressed anisotropic strontium ferrite arc magnets support multi-pole configurations (8, 10, or 24 poles) for BLDC fan rotors. The ferrite arc magnets for escort motors demonstrate how precise arc geometry directly improves motor efficiency and reduces noise during operation.

Mainstream Application Industries

The versatility of ceramic disc magnets shows in the range of industries that rely on them. From automotive components to household appliances, these magnets power everyday devices and industrial equipment. Recent trends in energy-efficient motor design and EV component sourcing have only increased demand for reliable ferrite-based solutions across multiple sectors.

• Automotive motors: Window lifter motors, wiper motors, and tailgate motors use arc ferrite magnets for stable field output.
• Household appliances: Inverter air conditioner BLDC fan rotors and energy-saving washing machine motors depend on ferrite tiles.
• Power tools: Motor series 380, 390, 540, 550, 750, and 775 use GC-2 grade ferrite with 1150 GS central field. Special needs use GC-9B grade at 1250 to 1300 GS. See our 4KW digital motor ferrite magnet for a high-power example.
• Fitness equipment: Treadmill motors use medium to large weight ferrite components for consistent resistance performance.
• Digital generators: 4KW and similar field equipment use high-performance strontium ferrite for reliable outdoor power generation.

Why GAUMU MAGNET Stands Out

Finding the right magnet supplier matters as much as choosing the right magnet grade. At GAUMU MAGNET, we have spent years building a vertically integrated production system that covers everything from raw material formulation to final surface grinding. Our ferrite magnet factory in Huangshan operates with 150T to 230T forming machines, electric kilns, and ultrasonic cleaning lines. We also run a metallic materials factory in Dongguan that supplies copper alloy strips, including the c2680 brass strip and other high performance alloy strip products for motor assemblies.

Our production extends beyond magnets alone. We supply material c2680 brass strip, phosphor bronze, red copper, and aluminum alloy strips that pair with magnetic components in motor assemblies. The c2680 material offers beautiful color, good processability, and excellent drawing performance for electronics and electrical applications. These copper alloy strips complement our ferrite magnets to give customers a true one-stop solution for motor magnetic materials. You can browse our full product catalog on the gaumumagnet.com website.

We hold IATF 16949:2016 certification, maintain over 98% batch consistency, and respond to over 99% of inquiries within 24 hours. Whether you need ferrite cylinder magnets, disc shapes, or custom arc profiles, our team adapts swiftly to your design requirements. We have successfully reduced the cost of high-temperature resistant magnets by 15%, delivering superior performance and enhanced value to our customers.

Conclusion

Ceramic disc magnets remain a workhorse in modern engineering. Their combination of low cost, corrosion resistance, and thermal stability makes them suitable for automotive motors, household appliances, power tools, and outdoor equipment. The raw materials — strontium carbonate and iron oxide — are abundant and environmentally friendly, which aligns with the growing push for sustainable sourcing in manufacturing. As a ceramic permanent magnet, they deliver consistent performance without the supply chain risks tied to rare earth elements. At GAUMU MAGNET, we combine deep material expertise with vertically integrated production to deliver magnets and metal strips that meet real-world engineering demands. For your next motor project, our team is ready to provide custom solutions from prototype to mass production.

FAQs

Q: What is the maximum operating temperature of ceramic disc magnets?

A: Up to 135 degrees Celsius for grades like Y30BH and Y35.

Q: How much does a typical ceramic disc magnet weigh?

A: Between 5 grams and 500 grams, depending on size and grade.

Q: What is the minimum order quantity for custom ferrite cylinder magnets?

A: 10,000 to 200,000 pieces, based on dimensions and design.
