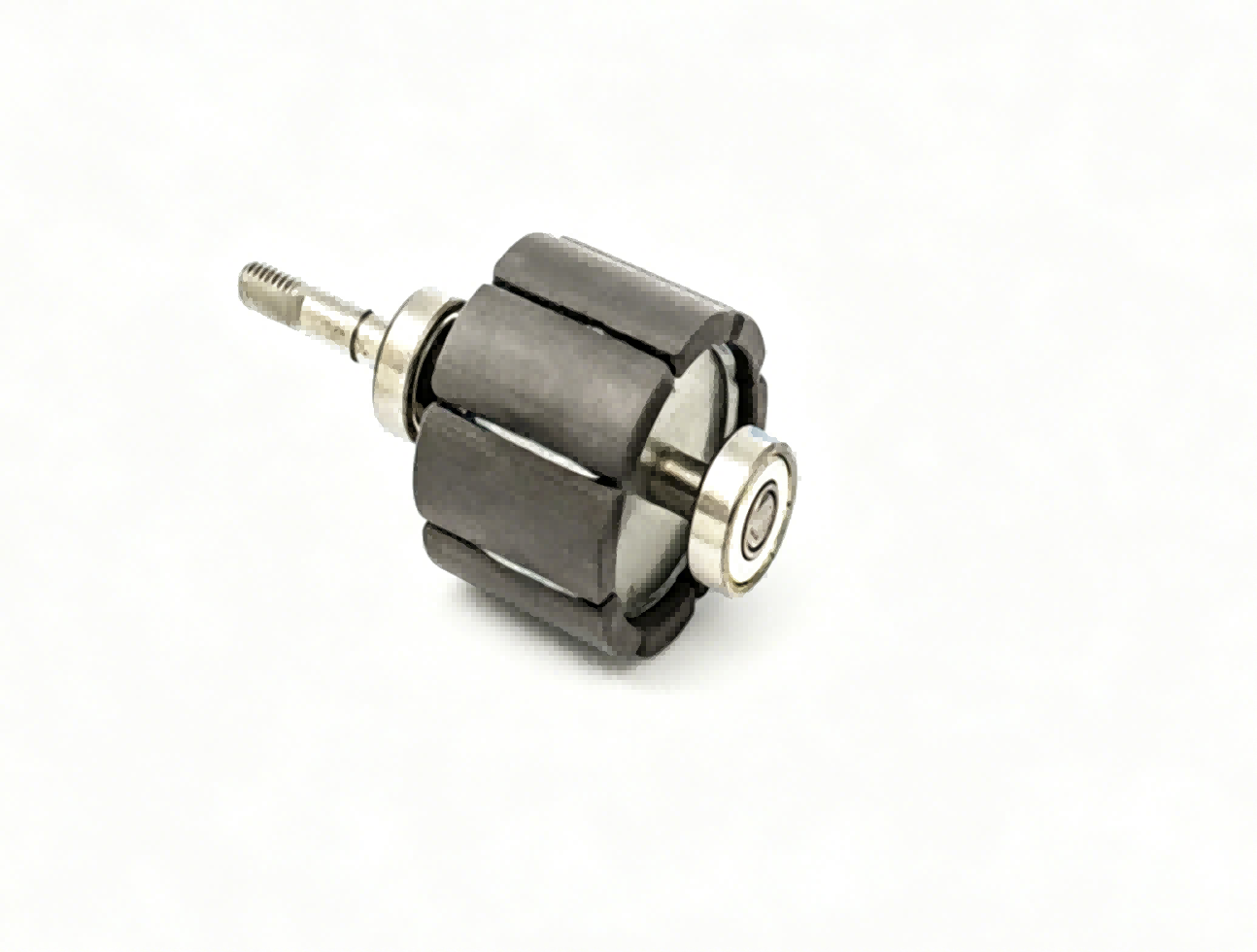

Premium Wet-Pressed Anisotropic Strontium Ferrite Arc Magnets for Inverter Air Conditioner BLDC Fan Rotors
High-performance wet-pressed anisotropic strontium ferrite arc magnets tailored for BLDC fan rotors of inverter air conditioners, offered in Y30BH, Y33 and Y35 grades.
They feature outstanding thermal stability up to 135℃ with minimal irreversible demagnetization even under high-temperature outdoor operating environments.
Uniform magnetic flux across batches delivers low cogging torque and ultra-quiet running performance ideal for indoor air conditioner fan motors.
Made of naturally anti-corrosive ferrite with no extra coating required, our magnets are fully RoHS-compliant and satisfy EU ErP energy efficiency regulations.
Custom multi-pole arc designs (8/10/24 poles) are available, alongside OEM molding service for complete rotor assemblies.
latest product
Window Lifter Motor Arc Strontium Ferrite Magnet
4KW Digital Motor Ferrite Magnet
geometric dimensions：R82.2，R73.1,W28.8，h9.2,L49 ∠22.5°
Magnetic performance parameters：
1.Br：4350Gs
2.Hcb：320.3kA/m
3.Hcj：378kA/m
4.(BH)max：37.1kJ/m³
Treadmill Magnets
geometric dimensions：R39.3,R180,W30.8,h8.5,L80
Magnetic performance parameters：
1.Br：4060Gs
2.Hcb：269kA/m
3.Hcj：278kA/m
4.(BH)max：31.4kJ/m³
Ferrite Arc Magnets for Escort Motors
geometric dimensions：R17.6,R12.5,W25.98，h5.1,H10,L46.2,∠126°
Magnetic performance parameters：
1.Br：4100Gs
2. Hcb：265 kA/m
3.Hcj：280kA/m
4. (BH)max：33.5kJ/m³
Household Brushed Treadmills
geometric dimensions：R46.5,R33.2,W84.5,h13.3,H33,L80,Magnetic
performance parameters：
1.Br：4020Gs
2.Hcb：261kA/m
3.Hcj：269kA/m
4.(BH)max：31.0kJ/m³
Ferrite Magnets for Large Motors
geometric dimensions：R24,R17,W34，h7,H13.9,L56,∠130°
Magnetic performance parameters：
1.Br：4050Gs
2. Hcb：271kA/m
3.Hcj：285kA/m
4. (BH)max：33.1kJ/m³
